iCarsoft CR Unicorn S (Personbil / lastebil)

iCarsoft sitt kraftigste verktøy som dekker både personbiler og lastebiler!

PrisNOK69 900,00 inkl. mva.
På lager
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

Dette verktøyet er det kraftigste fra iCarsoft med suverene funksjoner! Denne dekker alt av personbiler og lastebiler. Her får man endelig et alt-i-ett-verktøy som er første i sitt slag!



CR UNICORN S

ONE-STOP MULTITASKING
OE-LEVEL PROFESSIONAL AUTOMOTIVE CAR
AND TRUCK DIAGNOSTIC TOOL

Omni-directional

Intergraded Smart
Ultra-high Cost Performance

THE CR UNICORN S IS
ICARSOFT'S LATEST ONE-STOP INTELLIGENT AUTOMOTIVE
CAR AND TRUCK DIAGNOSTIC TOOL
With a 13.3 inches screen, this fantastic tool will certainly maximize technician intelligence. The CR Unicorn S comes with a smart VCI which includes the latest protocols such as J2534, DoIP, CanFD, D-PDU, and RP1210 protocols. It has heavy duty package with common adaptors for truks. It also standard equipped with TPMS Programming tool, Printer, Video scope and Battery Tester. The 4-channel Oscilloscope, Key programming and ADAS are optional which allows to shop on demands. Combined with the dynamic topology module mapping, enhanced camera scan features and Intelligent Diagnosis options, the CR Unicorn S offers the technicians step-by-step repair guidance.
CLOUD-BASED
ADVANCED ECU PROGRAMMING
AND CODING
The need to perform programming and coding services is now more relevant in the aftermarket than ever. There are more and more instances where programming/coding is necessary, e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc. There are two general types of programming operations:
A. ECU CODING
Also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.
B. ECU PROGRAMMING
iCarsoft CR Unicorn can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, The CR Unicorn diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.

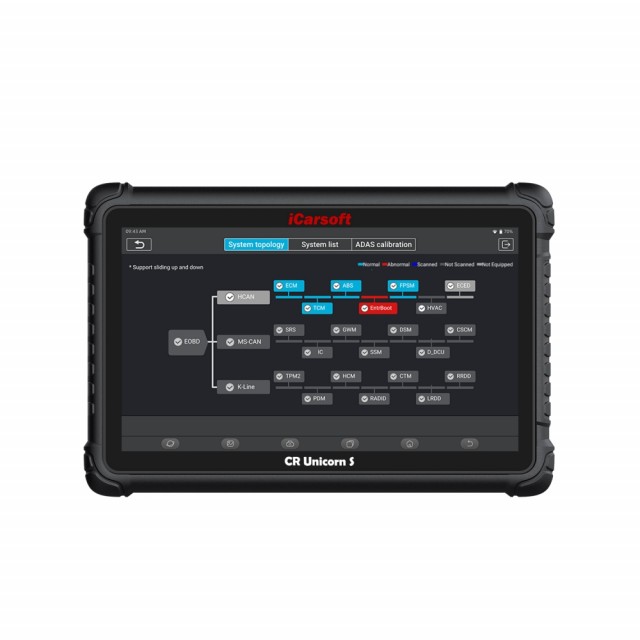

REVOLUTIONARY TOPOLOGY
MODULE MAPPING
iCarsoft CR Unicorn S has Topology Module Mapping design to give you the
distinctive diagnostic results:




Displays the entire system through the Topology Map to glance all the modules with faults, which is easy to locate
faults and causes. Color-coded topology displays all system status in one page
View structure of communication between modules
Makes Supported: for BMW, for Ford, for Volkswagen, for Audi, for GM, for Chrysler, for Nissan, for Honda, for Toyota-Lexus,
for Jaguar L-and Rover, for Mercedes-Benz, for Hyundai, for Kia, for Volvo.
BI-DIRECTIONAL
CONTROL /
ACTIVE TEST
CR Unicorn S is a bi-directional scanner that can send commands to the ECU to activate vehicle-specific subsystems and components like Fuel Pump, Valves, Injectors, Solenoids, Relay, AC Clutch, Wipers, Windows, Doors, Sunroofs ,etc. to perform tests like switching a Solenoid, Relay, EVAP test, etc.
SPECIAL SERVICE FUNCTIONS
FOR CARS
1    OIL (Maintenance Light Reset)
2    ETS (Throttle Matching)
3    SAS (Steering Angle Reset)
4    BMS (Battery Matching)
5    BLEEDING (ABS Bleeding)
6    BRAKE (Electronic Parking Brake Reset)
7    DPF (DPF Regeneration)
8    GEAR (Tooth Learning)
9    IMMO (Anti-theft Matching)
10    INJEC (Injector Coding)
11    TPMS (Tire Pressure Reset)
12    SUS (Suspension Level Calibration)
13    AFS (Adaptive Front-lighting System Reset)
14    GEAR BOX (A/T Learning)
15    SUN (Sunroof Initialization)
16    EGR (EGR Adaption)
17    ODO (ODO Reset)
18    AIR BAG (Airbag Reset)
19    TRANSPORT (Transport Mode)
20    A/F (A/F Reset)
21    STOP/START (Stop/Start Reset)
22    NOX (NOx Sensor Reset)
23    ADBLUE (Diesel Engine Exhaust Gas Filter)
24    SEATS (Seat Calibration)
25    COOLANT (Coolant Bleeding)
26    TYPE (Tire Reset)
27    WINDOWS (Windows Calibration)
28    LANGUAGE (Language Change)
29    AC System Relearn/Initialization
30    Engine Power Balance Monitoring
31    Gas Particulate Filter Regeneration
32    High Voltage Battery Diagnostics
33    Intelligent Cruise Control System
34    Motor Angle Calibration
35    IMMO PROG (Optional)

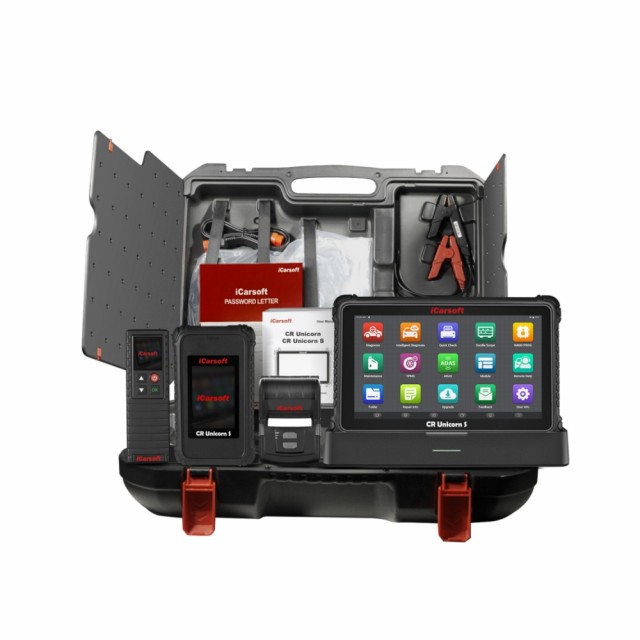

STANDARD CONFIGURATION
ICARSOFT T-WAND 9000
Support Sensor Activation
Support Sensor Programming
Read and Clear the Tire Pressure Faults
THERMAL
 PRINTER
BATTER TESTER
Offers full battery check services
Support Battery Health Test
Support Start System Test
Support Charging Health Test
Offers Test Report
DIGITAL INSPECTION CAMERA
The digital inspection camera is designed to work with CR Unicorn S. It turns your CR Unicorn S tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities and infrastructure in a safe and quick way.
OPTIONAL CONFIGURATION
THE ICARSOFT SCOPE BOX IS
AN OPTIONAL DEVICE, PLEASE VISIT THE FOLLOWING LINK TO
ORDER IT.BUY
ICARSOFT SCOPE BOX
  • Ultra-high configuration of 100MHz bandwidth, 4 channels, up to 1GSa/s of sampling rate, with 50Mpts record length.
  • A scope box focusing on automobile maintenance diagnosis, modular integration with the diagnosis host, customized software for automotive maintenance industry.
  • Perform different vehicle ignition tests, and a variety of sensor and actuation tests;
  • Support multi-vehicles’ BUS decoding.
  • Wide range of applications on gasoline vehicle, diesel vehicle, hybrid vehicle, new energy vehicle and truck.
IM2000 PRO IMMOBILIZER PROGRAMMER
THE ICARSOFT IM2000 PRO IS AN OPTIONAL DEVICE, PLEASE VISIT
THE FOLLOWING LINK TO ORDER IT.
Buy
IM2000 PRO ANTI-THEFT IMMOBILIZER PROGRAMMER
IM2000 PRO Anti-theft Immobilizer Programmer
Core Functions
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for the fifth-generation of For Audi (0AW/0B5) gearbox.
4. Supports reading, writing & cloning the ECU for the fourth-generation of For VW UDS engine.
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
6. Works with reprogramming device to backup/restore programming data (For Bosch/Siemens engine ECU).
7. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
8. Supports common ECU/MCU/EEPROM major manufacturers, with over 1200 product models, and constantly updating.
9. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC).
10. Supports ECU replacement for the fourth-generation of For VW/AUDI engine;
11. Supports ECU replacement for the fifth-generation of For VW/AUDI Bosch and Siemens engines.
12. Supports the all lost and replacement for the fourth generation of For AUDI EZS, comfortable ECU, and KESSY IC.
13. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
14. Supports the BMW CAS4/CAS4+ module replacement.
15. Supports the ECU cloning and replacement for BMW Siemens engines.
16. Erase the password for Mercedes-Benz engine and gearbox within 3S.
17. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.
Technical parameters
Input Voltage: 12 V
Input Current: 500mA
Working Environment: 0°C~50°C
Storage Environment: -20°C ~70°C

Vehicle connection:
For most vehicles, just use the included OBD II extension cable to connect the VCI of the diagnostic tool (Such as iCarsoft CR Unicorn, CR Unicorn S and CR Ultra) to the vehicle's DLC port.
PRODUCT SPECIFICATIONS

Operating System: Android 9.0
RAM: 8G
ROM: 256G
Screen: 13.3 inches Touchable;
Battery Capacity: 18600mAh/3.8V
Resolution: 1920*1080
Camera: Rear 13.0MP
Network: Wi-Fi, WLAN 802.11b/g/n
Bluetooth: Bluetooth 5.1
Working Temperature: 32°F~122°F （0°C~50°C））
Storage Temperature: -40°F~140°F （-20°C~60°C）
Demission: 14.33*11.22*3.23 inches (364*285*82 mm)
Weight: 5.54lb (2512g)

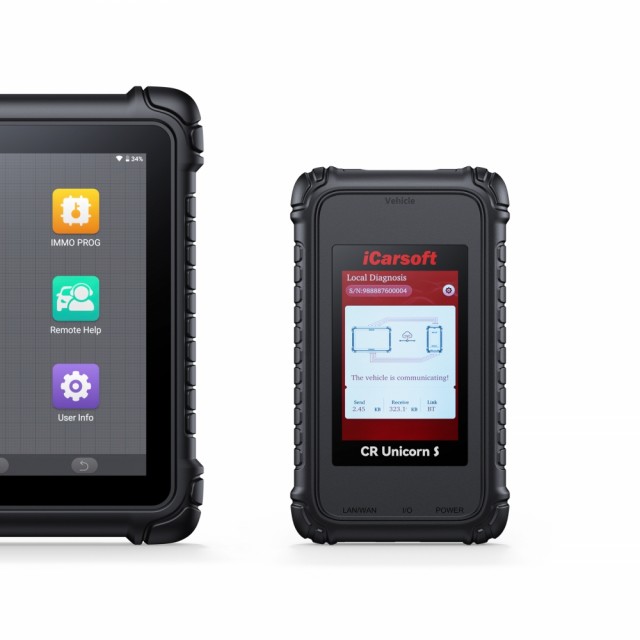

VCI

Screen: 3.97 inches RAM: 256M
ROM: 8G
Power: 6W
Operating Voltage: 9~36V
Local Diagnostic Communication:
Wi-Fi/USB
Working Temperature: 32°F~122°F
(0°C~50°C)
Storage Temperature: -40°F~140°F
(-20°C~60°C)
Demission: 7.72*5.31*1.70 inches

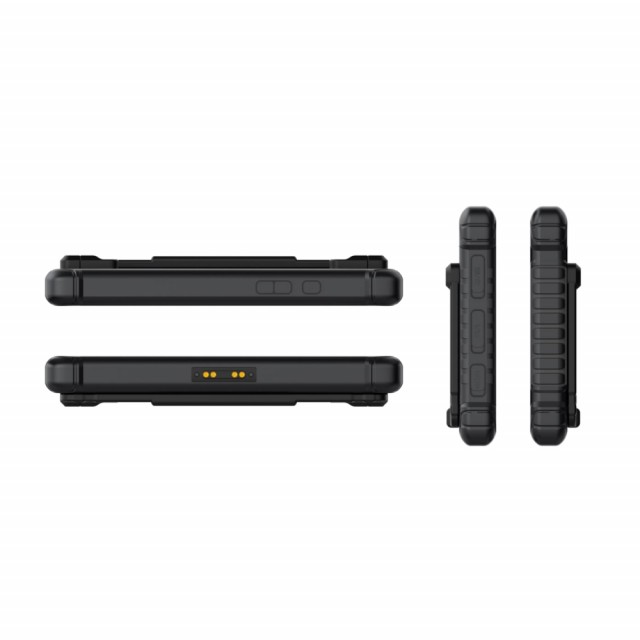

PRODUCT DETAILS DISPLAY
PRESENTATION OF EFFECT
CONTENTS
OTHER ACCESSORIES
OPTIONAL ACCESSORIES
