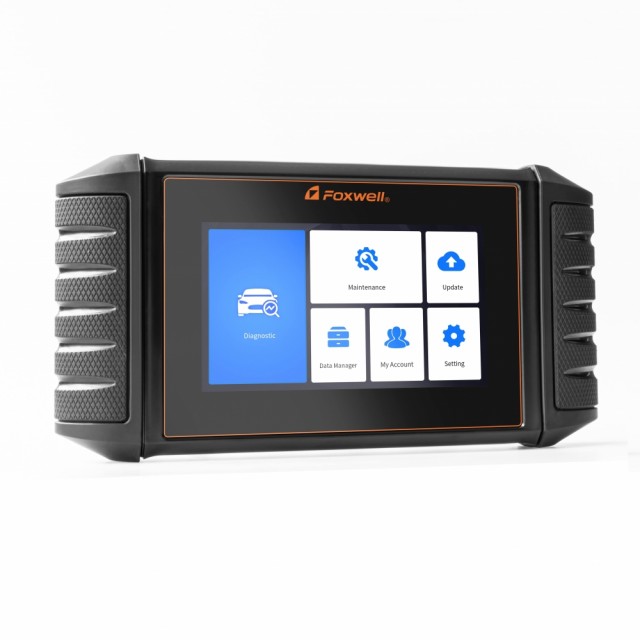

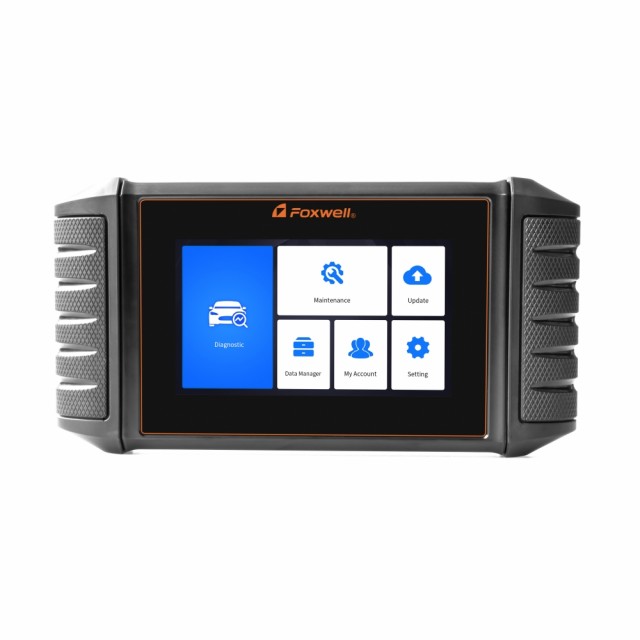

i50Pro er en nyutviklet diagnostisk scanner med Android 9.0 operativsystem. Denne tilbyr teknikere og entusiaster en enkel og rimelig løsning for å finne problemer med alle elektroniske moduler på store amerikanske, asiatiske og europeiske merker.
Spesifikasjoner:
Features
1. Fast boot up and multitasking based on Android 9.0 operating system
2. Provides easy diagnosis on multiple vehicle makes
3. Works on both OBDI and OBDII vehicles including the latest 2023 models
4. Identifies cars quickly and easily with one-key VIN reading
5. Reads and clears codes of all electronic modules
6. Supports the most common required service functions including Oil Reset, EPB, TPS, SAS, TPMS, DPF, Injector and ABS Bleeding etc.
7. Shows live sensors data and provides data graphing
8. Merges PID graphs for easy and intuitive diagnosis
9. Displays freeze frame data
10. Retrieves ECU information
11. Multilingual menu options and code definitions
12. One Touch Update via WIFI makes the scanner keep the latest system
status at all times
13. One Touch Complaint allows for quicker and more accurate fixes for
your diagnostic troubles and bugs
14. Instant support available from Foxwell technical team by teamviewer
remote control
15. Lifetime free update
Specifications
|
Screen
|
5.5" diagonal, daylight readable color LCD screen;
1280*720 pixel
|
|
Operating System
|
Android 9.0
|
|
CPU
|
Quad-Core, 1.3GHZ
|
|
Memory
|
1GB
|
|
Hard drive
|
32GB
|
|
Communication Interface
|
Built-in WIFI 802.11 ac/a/g/b/n Wireless LAN
|
|
micro USB 2.0 OTG, USB 2.0 HOST standard
|
|
Bluetooth 5.0 (10-20 m)
|
|
Battery
|
4000mAh, Lithium-polymer battery,
chargeable via 5V USB power supply
|
|
Protocols
|
ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K lines, SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed, Middle-speed, Low-speed and Single-wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, TP2.0, TP16, SAE J1939, SAE J1708, Fault-Tolerant CAN
|
|
Dimensions
|
236*124*38mm (L*W*H)
|

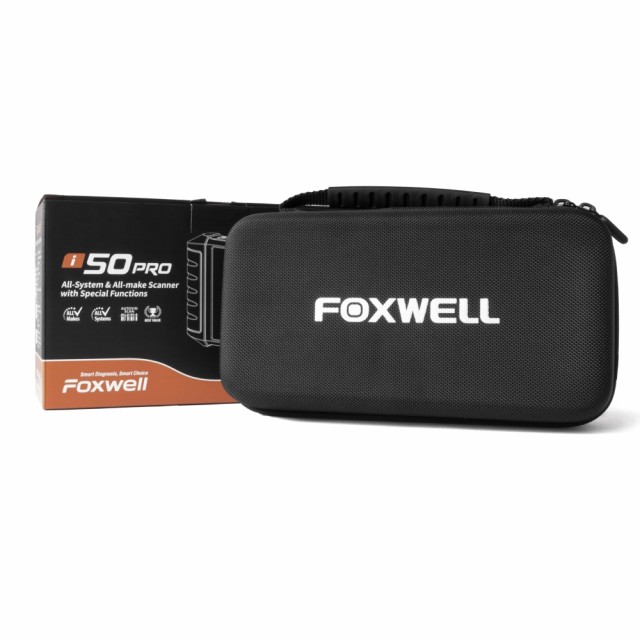

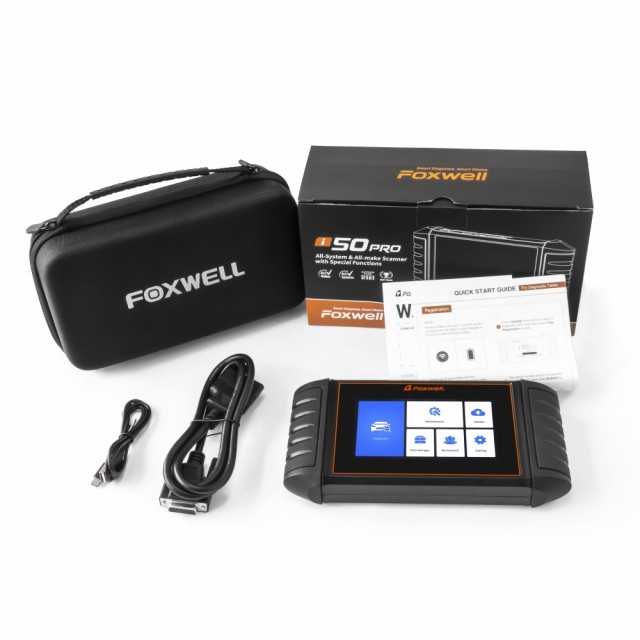

Kit Includes
I50Pro Main Unit
Diagnostic Cable
USB Cable
User Guide/Warranty
