iCarsoft OPV2 er etterfølgeren til den gamle OP 2 og er en merkespesifikk feilkodeleser som tar full diagnose på Opel. Nytt på dette verktøyet er at den også tar regenerering av DPF!
Denne bruker Opel's programvare som normalt bare finnes i profesjonelle diagnoseverktøy. Denne finnes nå for enkeltmerker, deriblant Opel hvor man nå kan få en meget god feilkodelser til relativt lave priser.
Med et slikt diagnoseverktøy kan du identifisere feil og varsellamper på din bil selv. Dette gjør at du unngår dyre verkstedbesøk!
iCarsoft OP V2 er ideell for brukere som kun jobber med merkene BMW og Mini og ønsker å lese dem på et høyt nivå. iCarsoft tilbyr også gratis fortløpende oppdateringer som inkluderer nye modeller.
Egenskaper:
• Tar full ECU-diagnose på samtlige Opel-modeller: Alt fra elektroniske systemer (motor, girkasse, ABS, kollisjonsputer, bremser, startsperre, instrumentpanelet, air condition, servostyring, Body, Chassis og mye mer)
• Kompatibel med: - Opel-modeller etter 2001.
• Mulighet for tilbakestilling av parkbrems, servicereset, oljelampa, andre servicemeldinger, bremseklosser, kupefilter mm.
• Mulighet or åpne/lukke bremsecaliper (EPB: elektronisk parkbrems), kalibrering av ulike sensorer (styrevinkelsensor, rattvinkelsensor), ETCS-reset og diese-partikkelfilter regenerering (DPF).
• Lesing/sletting av generiske og produsent-spesifikke feilkoder, samt mulighet for å lese ut informasjon om VIN, CVN og CIN.
• Feilkodene som kommer opp vises med en beskrivelse, og ikke bare selve koden. Dette er unikt for iCarsoft og veldig brukervennlig.
• Mulighet for å innhente Freeze frame, samt livedata inkludert grafisk fremstilling.
• Lekkert design med robust gummikonstruksjon.
• Gratis support fra iCarsoft-teknikere og Diagnosebutikken.no
iCarsoft OP V2 leveres med følgende tilbehør:
• iCarsoft OP V2
• Universal OBD2-kabel
• USB-kabel for oppdateringer
• Kortleser
• Micro SD-kort
• Bruksanvisning
PROFESSIONAL MULTI-SYSTEM AUTO DIAGNOSTIC TOOL OP V2.0
FOR OPEL/VAUXHALL +OIL RESET +EPB+DPF+SAS+ETC+OBDII
iCarsoft OP V2.0 is a Professional and powerful vehicle fault diagnosis tool for Opel/Vauxhall developed by iCarsoft Technology Inc. With a 4.0" TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.

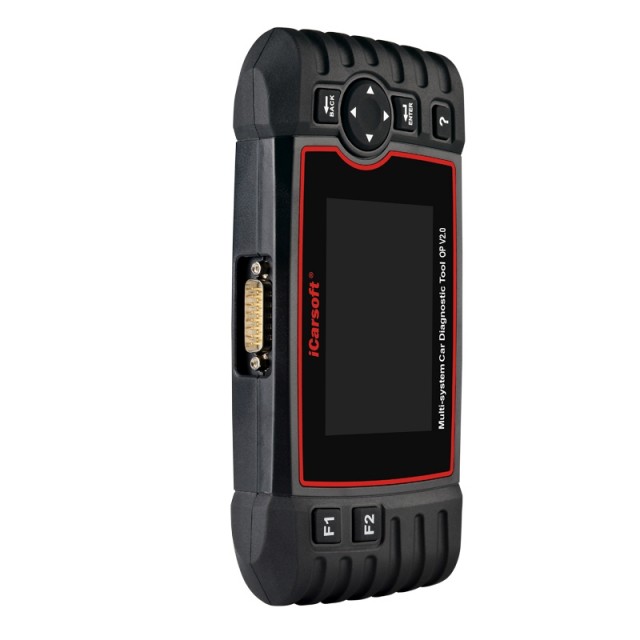

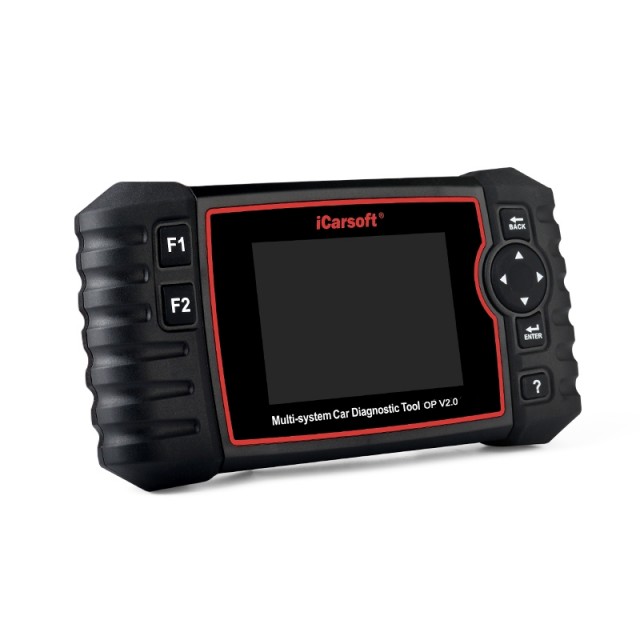

① BACK BUTTON--Returns to previous menu.
② UP BUTTON--Moves cursor up for selection.
③ LEFT BUTTON--Moves cursor up for selection.
④ RIGHT BUTTON--Moves cursor down for selection.
⑤ DOWN BUTTON--Moves cursor down for seiection.
⑥ ENTER BUTTON--Confirms a selection(or action)
from a menu list.
⑦ HELP BUTTON--Shows help information for test
results or user operation
⑧ F1 FUNCTION BUTTON--In case of special use.
⑨ F2 FUNCTION BUTTON--In case of special use.
⑩ OBDII CONNECTOR--Connects the scan tool to
the vehicle's Data Link Connector via OBDII Cable.
⑪ STORAGE CARD SLOT--Holds the system of the
scan tool.
⑫ Data Cable CONNECTOR--Connects the scan tool
for power supply and update the software if needed.
PRODUCT FEATURES
1.iCarsoft OP V2.0 can do it all-reads and clears trouble codes on most of the systems
such as engine, transmission, ABS and airbag etc.
2.Support OBDII/EOBD Ten Modes of Operation
3.Read Live Data
4.Full ECU Diagnosis
5.Applies to the single Brand of most of the Models which equipped with OBDII-16 DLC
6.Easy To Use With Silicone Keys
7.Oil Light/Service Reset: Support service lamp reset.
8.Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the
EPB system for replacement and initialization.
9.Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regen-eration
process while DPF blockage and turn off the DPF indicator.
10.Electronic Throttle Control system (ETC) relearns the throttle va value while clear or
replaces the throttle valve.
12.SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to
straight ahead, or recalibrates SAS while steering part replacement.
13.The Print Data function allows you printing out diagnostic data recorded by the scan
14.Battery test allows you getting the voltage of battery with OBD port by the scan tool
when the engine starts.
15.DTC Library to lookup when user is operating this tool.
16.Upgrade Via PC
17.Multi-language: English, German, Dutch, Spanish, French.
FOURTEEN
SUPER ADVANTAGES
▪Diagnose Single Brand of most Models (OBDII-16DLC)
▪Full System Diagnosis ▪Support Oil Service Reset
▪Electronic Parking Brake (EPB) system maintenance
▪Diesel Particulate Filter (DPF) Regeneration Control System
▪Electronic Throttle Control System (ETC)
▪Steering Angle Sensor (SAS) Calibration
▪Read &Clear DTC ▪Read Live Data
▪Support Battery Test ▪Support Data Review and Print
▪Full Speed Upgrade via PC ▪4.0″ TFT LCD, 480*320 Pixels
▪Support Multi-Language
OBDII FUNCTION1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing. 4. Data stream.
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
11.Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More
CONTENTS
OP V2.0 Main Unit
TF card (In the main unit)
Main Cable
Data Cable
User Manual
SPECIFICATIONS
Display: 4.0″ TFT LCD, 480*320 Pixels
Operation Temperature: 0°C ~ 50°C
Storage Temperature: -20°C ~ 70°C
Operating Voltage: 9 ~ 18V
Operating Current: 150mA@12V (Typical)
Power Consumption: 1.8W (Typical)
Dimension: 206*104.1*32.6 mm (L x W x H)
