Dette er en batteritester med innebygd printer, mulighet for testing (start/stop) på AGM/EFB-batterider, AGM-flatplate, AGM-spiral og gummibatterier på 12V/24V.

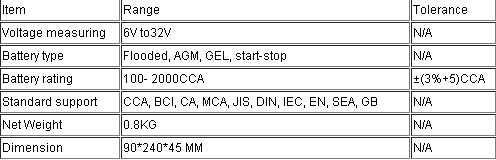

Spesifikasjoner:
Printer:
Denne batteritesteren innehar en innebygd printer hvor man kan få printet ut direkte fra testeren ulike data.
Egenskaper:
● Dedicatedly developed to test start-stop AGM and EFB batteries
●Advanced conductance test technology makes test more convenient and accurate
● Ripple voltage test allows the technicians to check the output voltage of alternator quickly
● Built-in thermal printer makes it possible for the technicians to print test results at anytime and anywhere
● SOC and SOH test result display makes technicians easier and faster to judge the battery status

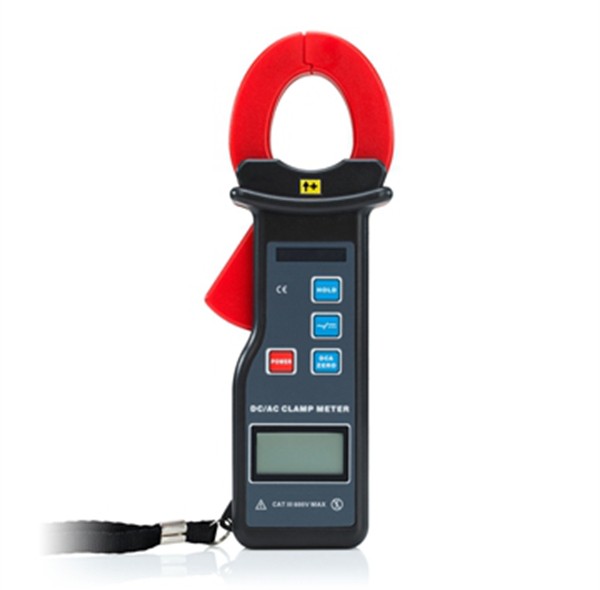

● Equipped with 0-1000A AC and DC current clamp(optional)
● Replaceable testlines
●Tests multiple battery types- regular flooded, AGM flat plate, AGM spiral and gel, start-stop AGM and EFP batteries
●Tests multiple rating systems- CCA, BCI, CA, MCA, JIS, DIN, IEC, EN,,SAE, GB
● Quick and accurate test result display in just3 seconds
●Applicable for12V battery system and12V& 24V starting and charging system
● Advanced starter/alternator test
● Quick starter analysis without disabling the ignition
● Does not emit light, heat or spark, or discharge battery- keeps operation safe for all levels of users
●Multilingual menu and test results-Chinese, Dutch, English, French, German, Hungarian, Japanese, Korean, Polish, Portuguese, Russian and Spanish

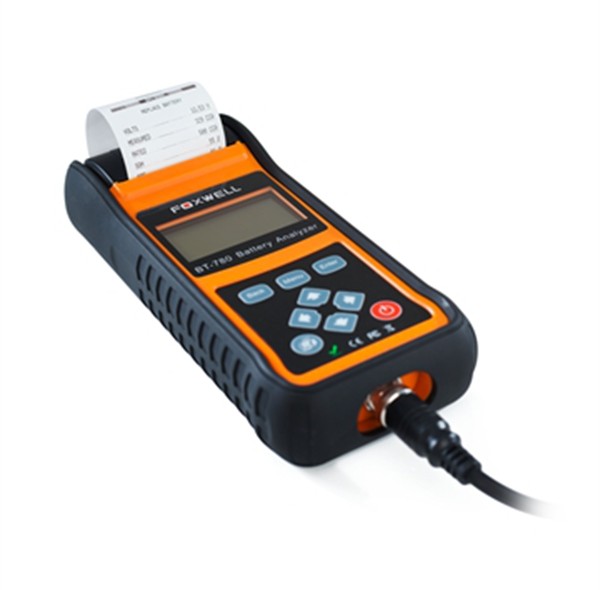

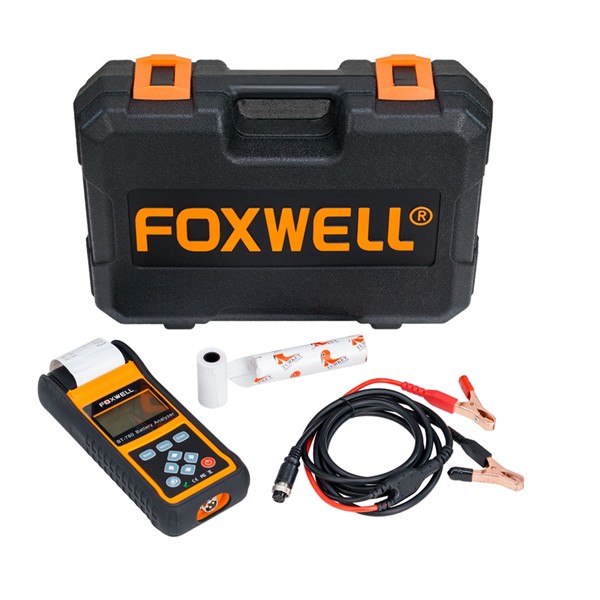

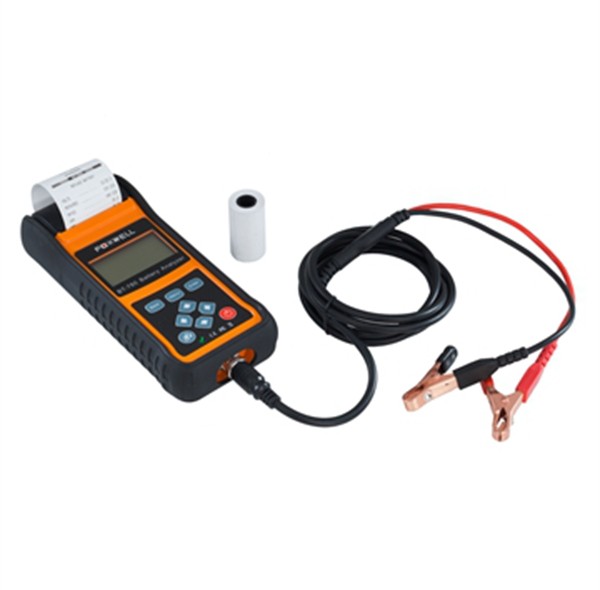

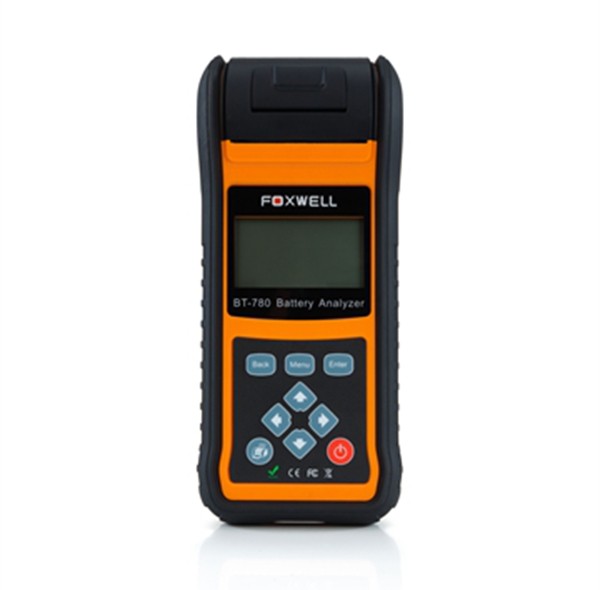

Visningsbilder av verktøyet:
Sammenligning av BT780 og BT705:
|
Foxwell BT-780 Battery Analyzer |
Foxwell BT705 Battery Analyzer |
MUX/Outlook |
|
|
Net Weight |
0.8KG |
1.2KG |
Gross weight |
4KG |
1.4KG |
Dimension |
90*240*45 MM |
190*90*36mm (L*W*H) |
Voltage Measuring |
6V-32V |
6V-32V |
Battery Rating |
100 to 2000CCA |
100 to 2000CCA |
Standard support |
CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB |
CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB |
Flooded, AGM, GEL |
√ |
√ |
Test start-stop AGM and EFB batteries |
√ |
— |
Internal resistance |
√ |
— |
Ripple voltage test |
√ |
— |
Printer |
Built-in thermal printer |

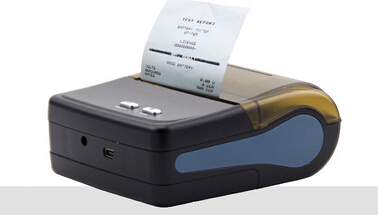

Optional Bluetooth printer |
