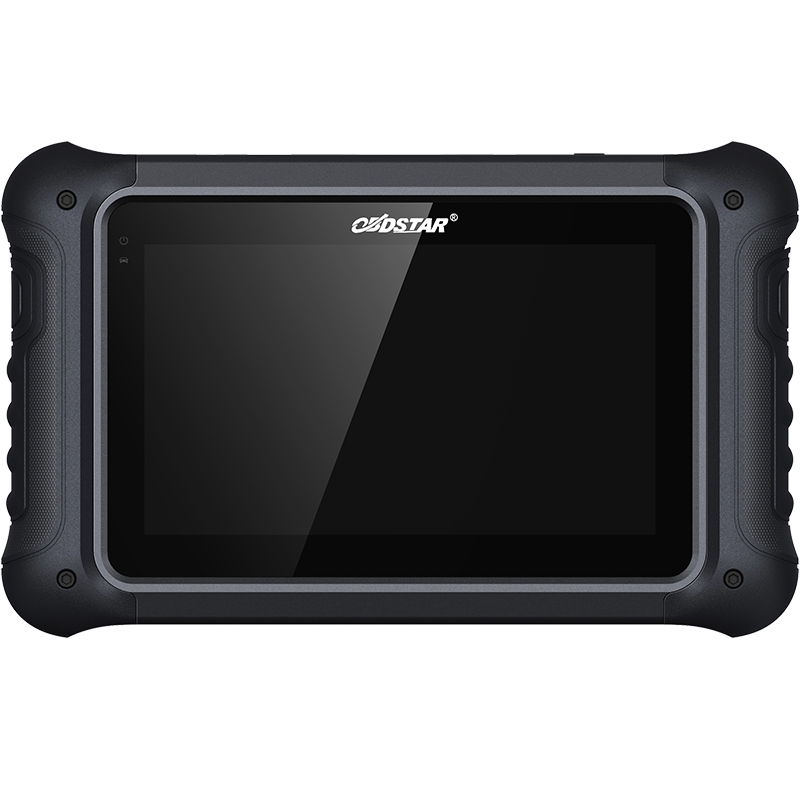

D700 er OBDSTARs nyeste verktøy til marine (jetski/påhengsmotor). Basert på Rexchip mikroprosessor er den utstyrt med en 7-tommers skjerm, som er ekstremt rask. D700 tar i bruk den nyeste 3.0 APK-plattformen.
Functions
1. Adopting the new Android system, smooth operation;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours etc;
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet, one-click software upgrade;
6. One-click remote function, OBDSTAR technical staff remote assistance.
Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location(DLC), flash code query, technical bulletin, manual service lamp reset, interactive wiring diagram, parameters, etc., which helps you diagnose accurately and efficiently together with D700 (free access for D700/D800 users only);
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Supports Auto Scan, Number of stations, Lever Adapt, Setting of the foot throttle, Active Trim Configuration, Auxiliary Joystick Configuration, Instrumentation configuration, Compass Configuration, Drive Alignment, Helm Setup, TDS Reset, Set Tilt Limit, SMUX Configuration, Trackpad Configuration, Key programming, Maintenance Notification Setting, Idle adjustment and other functions.

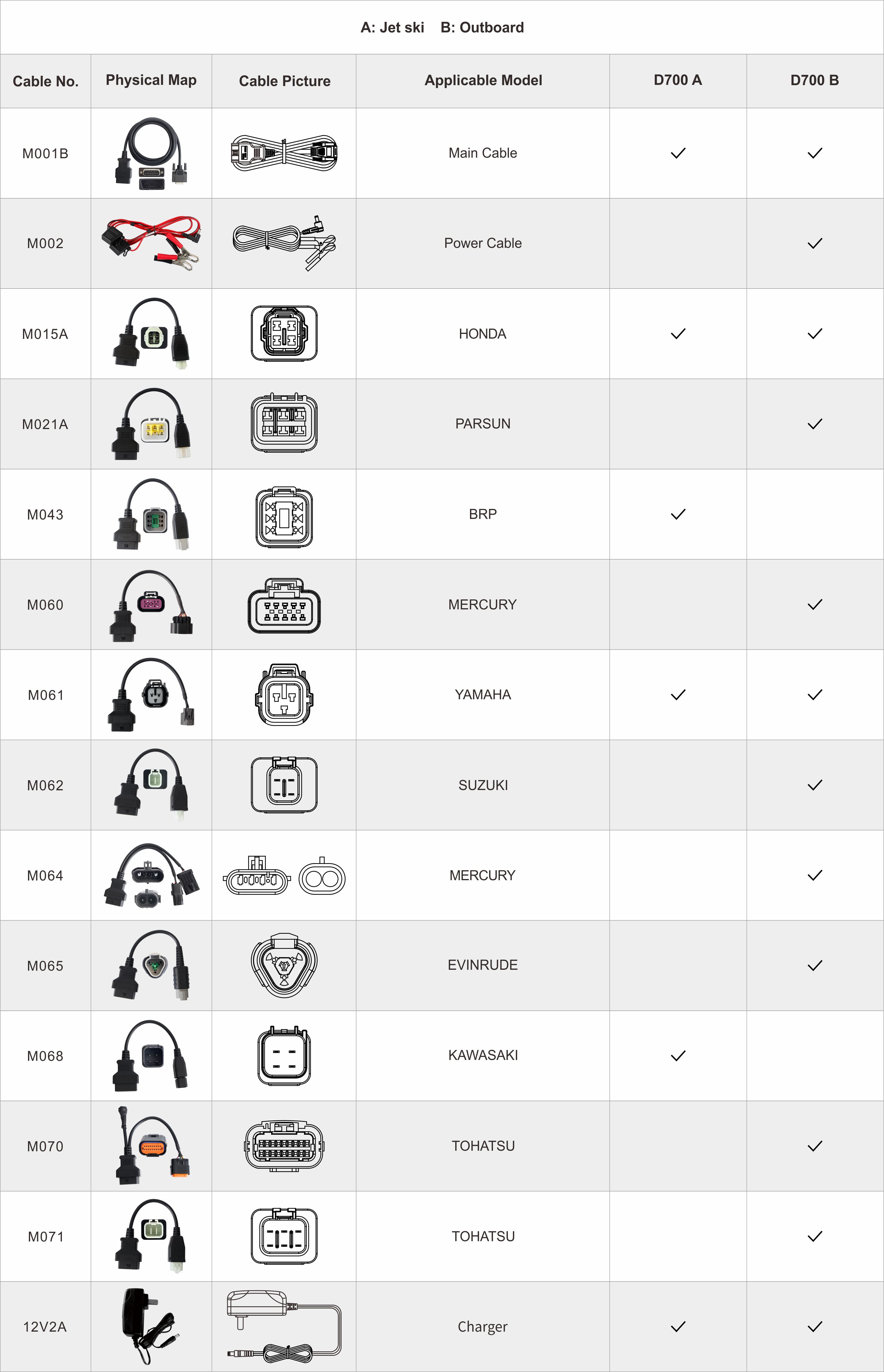

It has below two configurations
A: Jet ski B: Outboard
D700 A (Mainly for Jetski), supported brands as below:
BRP, HONDA, KAWASAKI, YAMAHA...
D700 B (Mainly for Outboard), supported brands as below:
EVINRUDE, HIDEA, HONDA, JOHNSON, MARINER, MERCURY, PARSUN, SELVA, SEVEN, SUZUKI, TOHATSU, YAMAHA...
More details, please check the software configurations in 'Specifications' and the coverages in 'Function Manual'.
Function Display-(From OBDSTAR Mobile App)
1) Main Page
2) Diag Socket/Diag Connector Location
3) Manual Service Function(Service Lamp Reset)
4) Technical Bulletin
5) Flash Code
Function Display-(From D700)

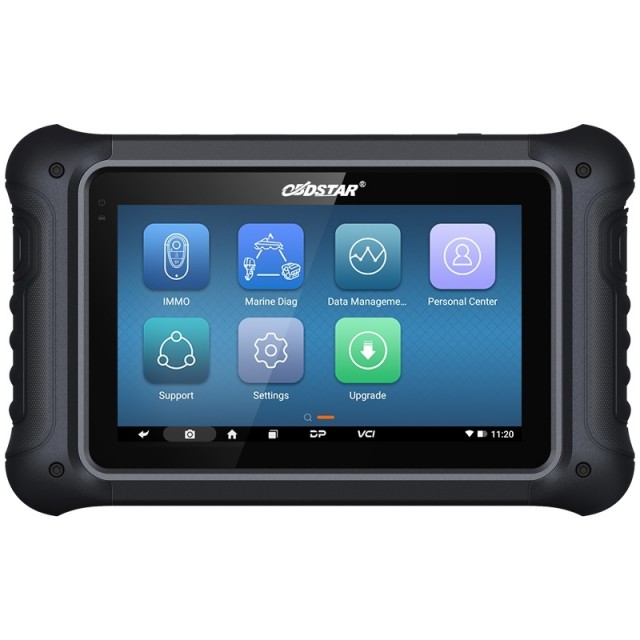

1) Main Page/Brand Supported-Depending on different configurations.
2) Menu Selection
3) Function Menu
4) Data Flow/Text/Waveform Diagram/Instrument Diagram
5) Special Functions-BRP
6) Special Functions-EVINRUDE
7) Special Functions-HONDA
8) Special Functions-JOHNSON
9) Special Functions-MERCURY
10) Special Functions-SUZUKI
11) Special Functions-TOHATSU
12) Special Functions-YAMAHA
